VSOL 1 Port GPON OLT DC + AC

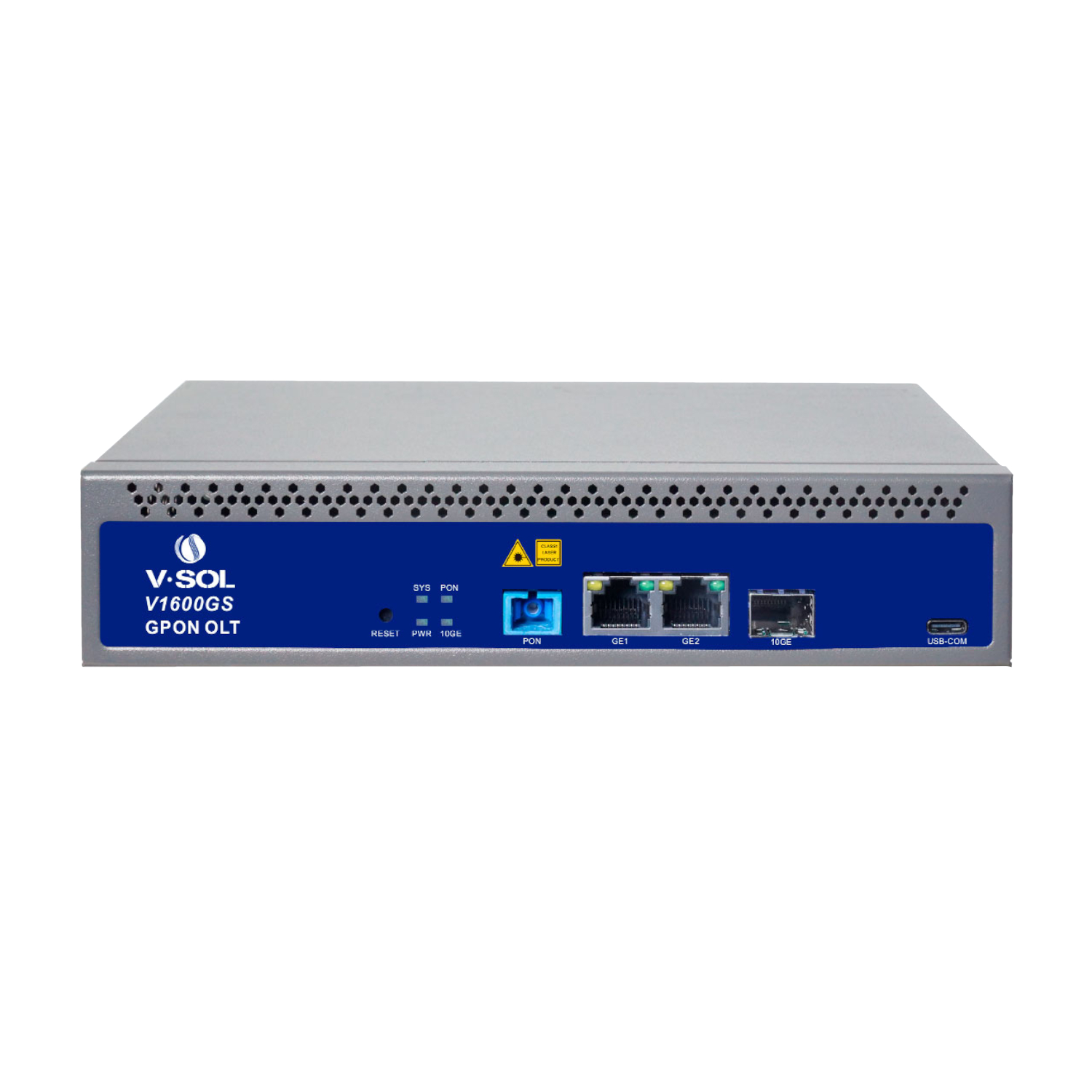

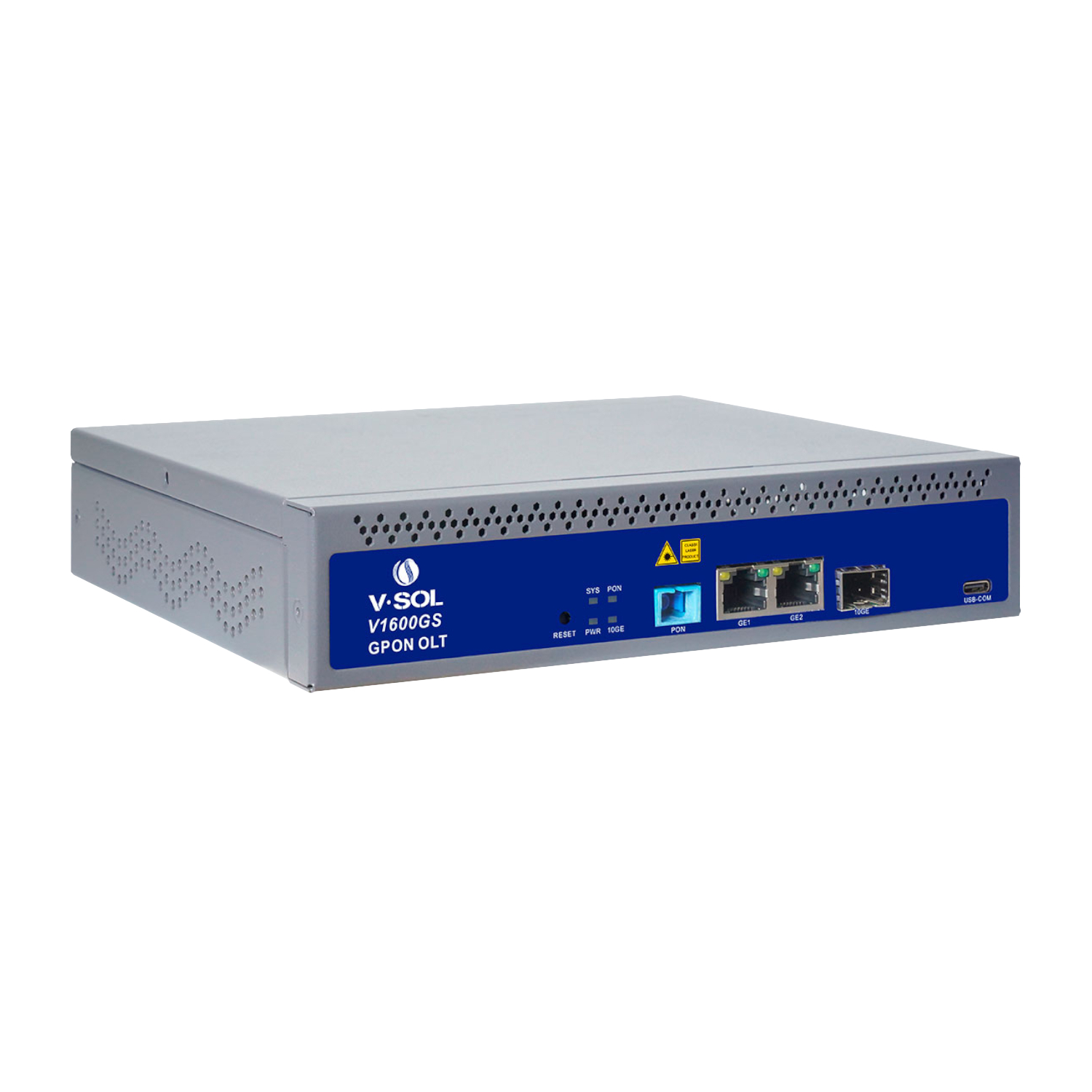

The VSOL V1600GS-F Single Port GPON OLT is a high-performance, cost-effective optical line terminal purpose-built for delivering ultra-fast and reliable fiber optic connectivity across small to medium-sized networks. Designed in a compact 1U box form factor, the V1600GS-F integrates GPON OLT functionality with gateway and AC controller features, making it an all-in-one solution for FTTH (Fiber-to-the-Home), SOHO environments, SMBs, and rental housing network upgrades.

Equipped with one GPON port and supporting a splitting ratio of up to 1:128, this device can handle large-scale user deployments while maintaining excellent performance. With transmission distances of up to 20km, the V1600GS-F ensures stable and long-range coverage, perfect for delivering gigabit broadband services over passive optical networks.

Capable of 1.25Gbps upstream and 2.5Gbps downstream, the V1600GS-F is ideal for applications that demand high throughput such as HD video streaming, IP telephony, cloud access, and enterprise-level data management. Its flexible deployment makes it suitable for both urban and rural network topologies where performance and affordability are critical.

The device features three uplink ports — two Gigabit Ethernet RJ45 and one SFP/SFP+ combo port supporting up to 10Gbps — ensuring fast and scalable backhaul connectivity. It includes centralized network management through WEB, Telnet, CLI, and SNMP, offering streamlined deployment and simplified administration across a range of network architectures. With support for plug-and-play AP control and centralized AC management, it forms the backbone of a POL (Passive Optical LAN) setup for modern offices and enterprise parks.

Additionally, the V1600GS-F is engineered for resilience and durability, featuring 4KV lightning protection for power and 1KV surge protection on device interfaces. It also supports both AC (100~240V) and DC (12V/2A) power inputs, offering flexibility across installation scenarios.

FEATURES:

• All-in-one Single Port GPON OLT
• Integrated OLT, Gateway and AC Function
• High-Speed Fiber Optic Coverage
• Easy Installation Saves Investment
• Centralized Management and Plug & Play
• AC+AP Solution
• POL Network of Small & Medium-sized Enterprises
• Rental Housing Network Renovation

SPECIFICATIONS:

• Rack: 1U
• Uplink Port
  • QTY: 3
  • RJ45(GE): 2
  • SFP(GE)/SFP+(10GE): 1
• GPON Port Specification
  • QTY: 1
  • Fiber Type: 9/125μm SM
  • Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm
  • GPON port speed: Upstream 1.244Gbps | Downstream 2.488Gbps
  • Wavelength: TX 1490nm, RX 1310nm
  • Max splitting ratio: 1:128
  • Transmission Distance: 20KM
• Management Ports: 1 x USB-COM(Type-C) port
• Backplane Bandwidth: 16Gbps
• Port Forwarding Rate: 23.808Mpps
• Management Mode: WEB/Telnet/CLI/SNMP
• Power Supply
  • AC Power Adapter: Working Voltage Range: 100~240V | Rated Voltage: 110V/220V
  • DC Power Adapter: DC 12V/2A
• Lightning Protection Level
  • Power supply: 4KV
  • Device Interface: 1KV
• Product Dimensions: 21 x 17.3 x 4.36 cm
• Product Weight: 1070 g

WHAT’S IN THE BOX:

• V-Sol V1600GS-F Single Port GPON Optical Line Terminal x1
