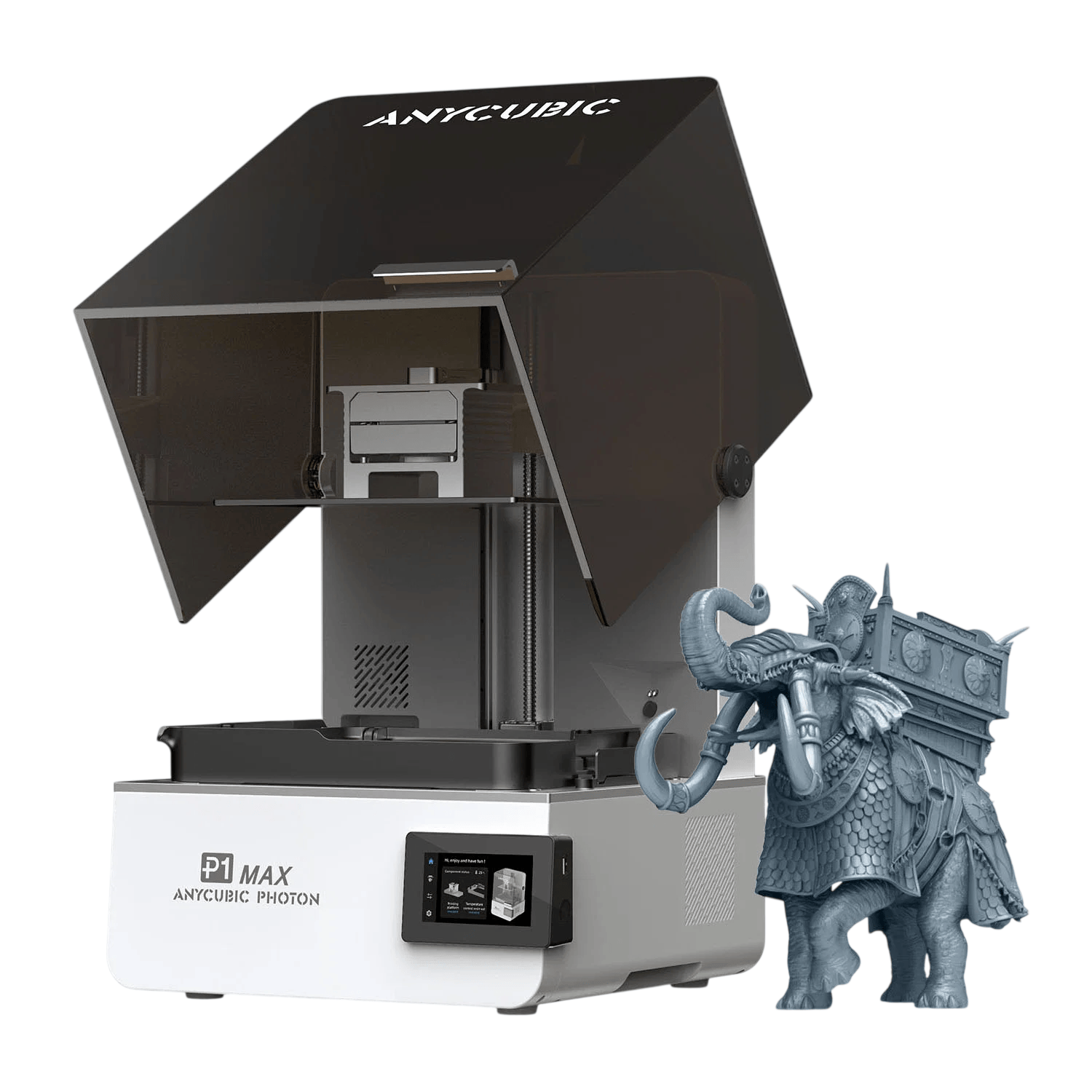

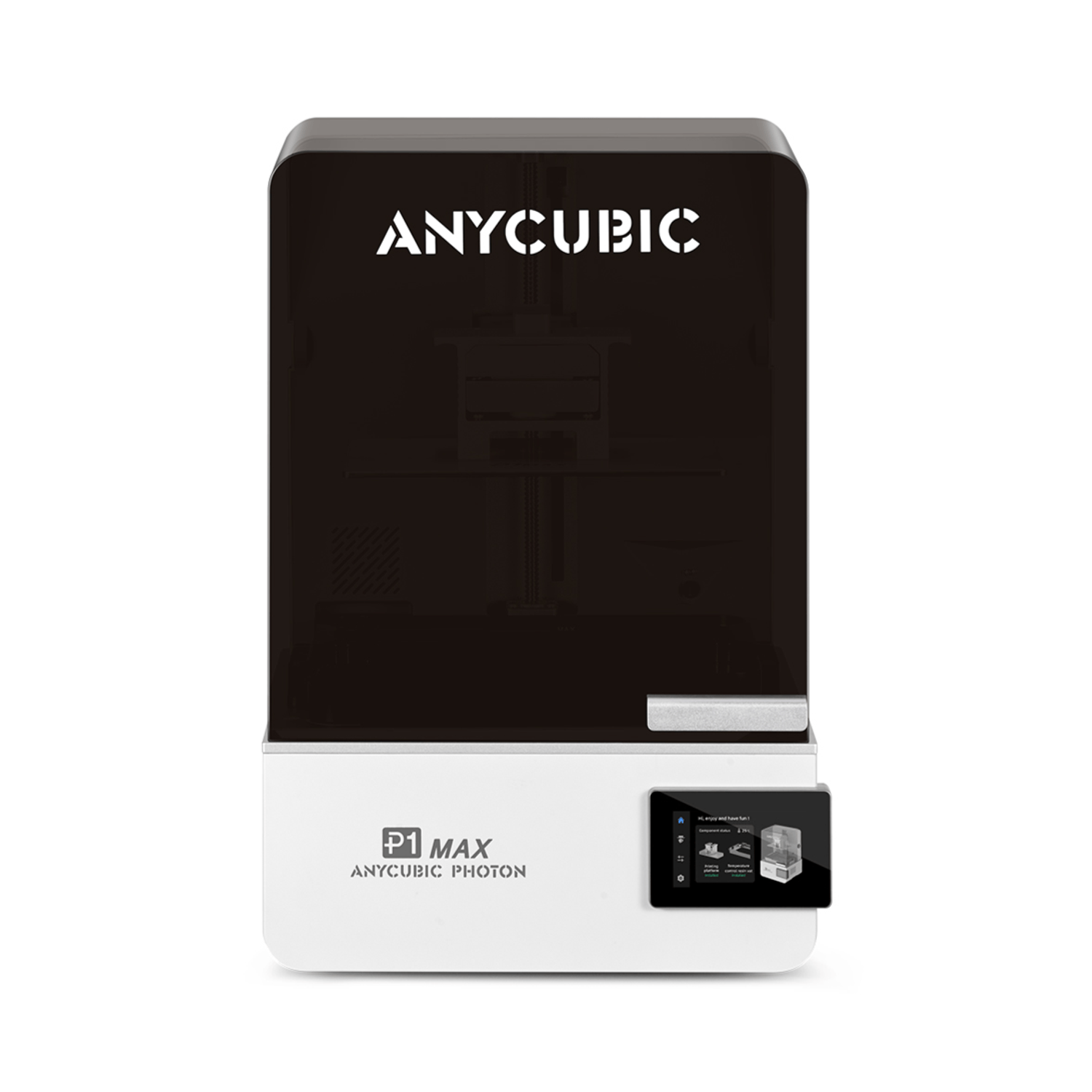

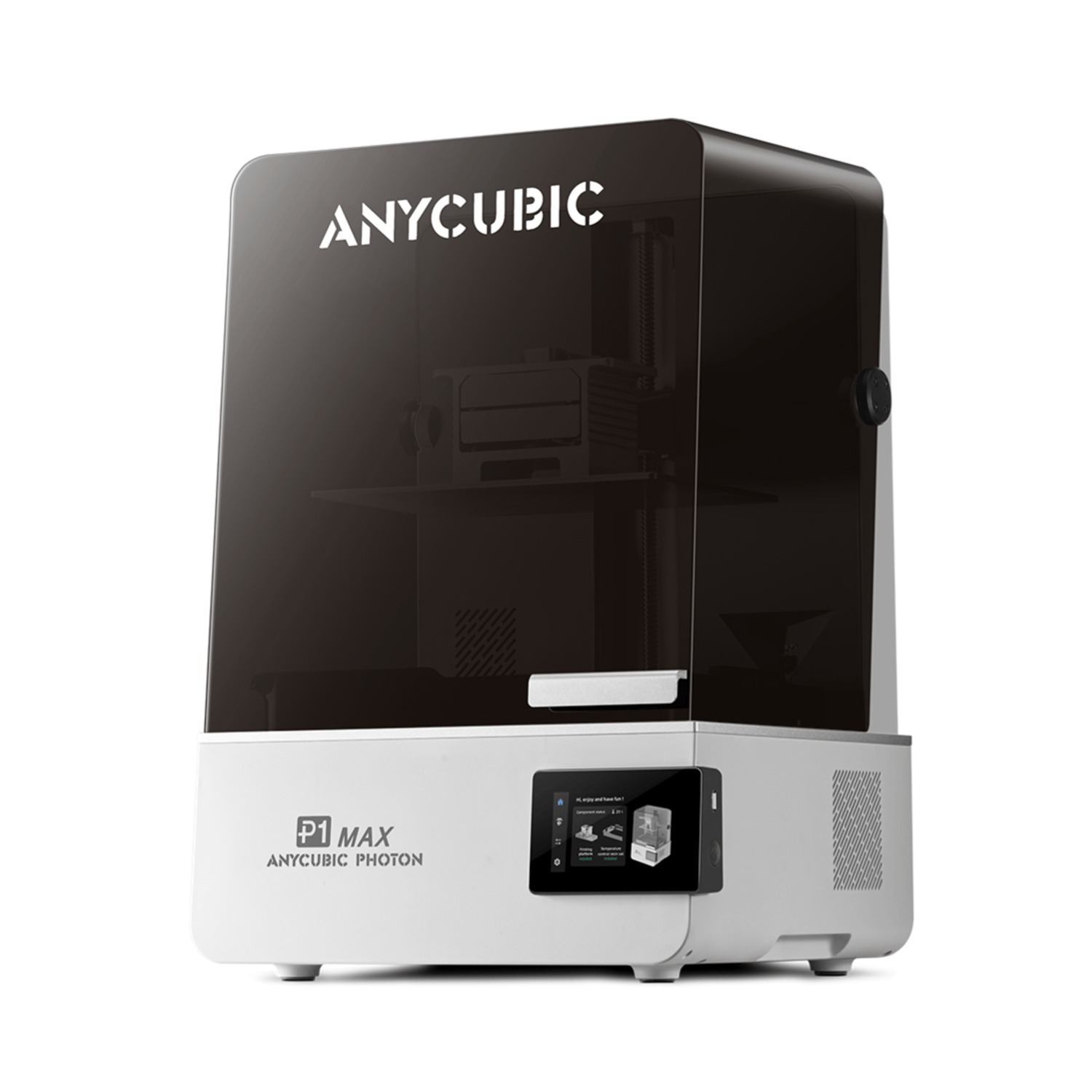

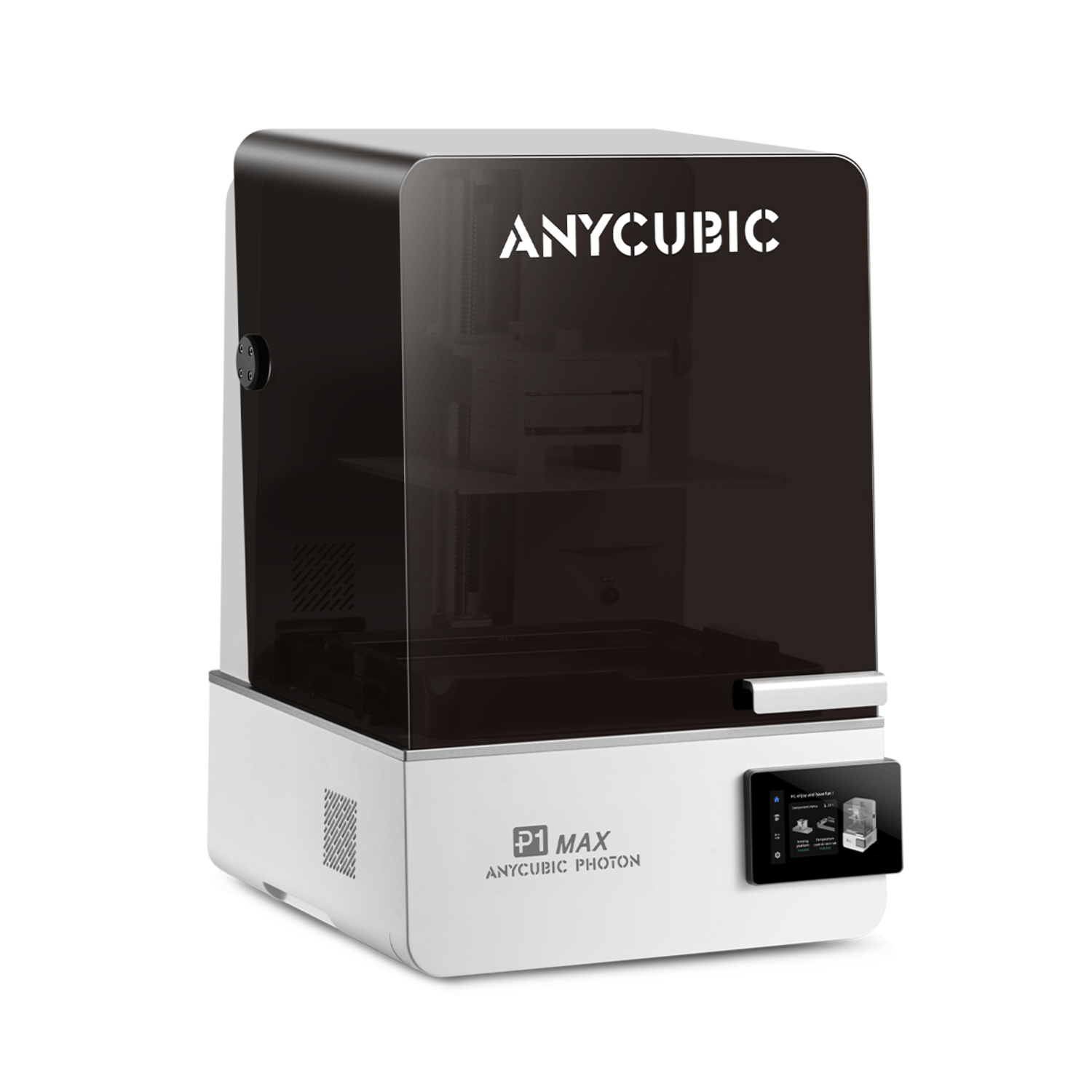

Photon P1 MAX

Large-format MSLA resin printing | Intelligent levelling and monitoring | Ultra-fine 0.02 mm layer detail | Quiet enough for home or studio use

Quick Specs

• Print at scale with a massive 285.5 × 214 × 300 mm build volume — 18.3 litres of creative space in a single print cycle
• Achieve exceptional detail with layer heights as fine as 0.02 mm across the full build area
• Print with confidence using Leveling-Free 3.0 with automatic self-check, so every session starts right
• Monitor and control your print remotely via the Anycubic App over Wi-Fi or Ethernet — no babysitting required
• Enjoy whisper-quiet operation at ≤45 dB, making it suitable for studio, workshop, or home environments

Scale Up Without Compromise

The Anycubic Photon P1 Max is a large-format MSLA resin 3D printer built for creators, professionals, and production users who need serious build volume without sacrificing detail. With a 285.5 × 214 × 300 mm print volume — 18.3 litres of usable space — you can produce genuinely large models, dense batch runs, or tall intricate pieces in a single cycle, eliminating the need to split, glue, and re-align parts.

Precision Engineering, Layer by Layer

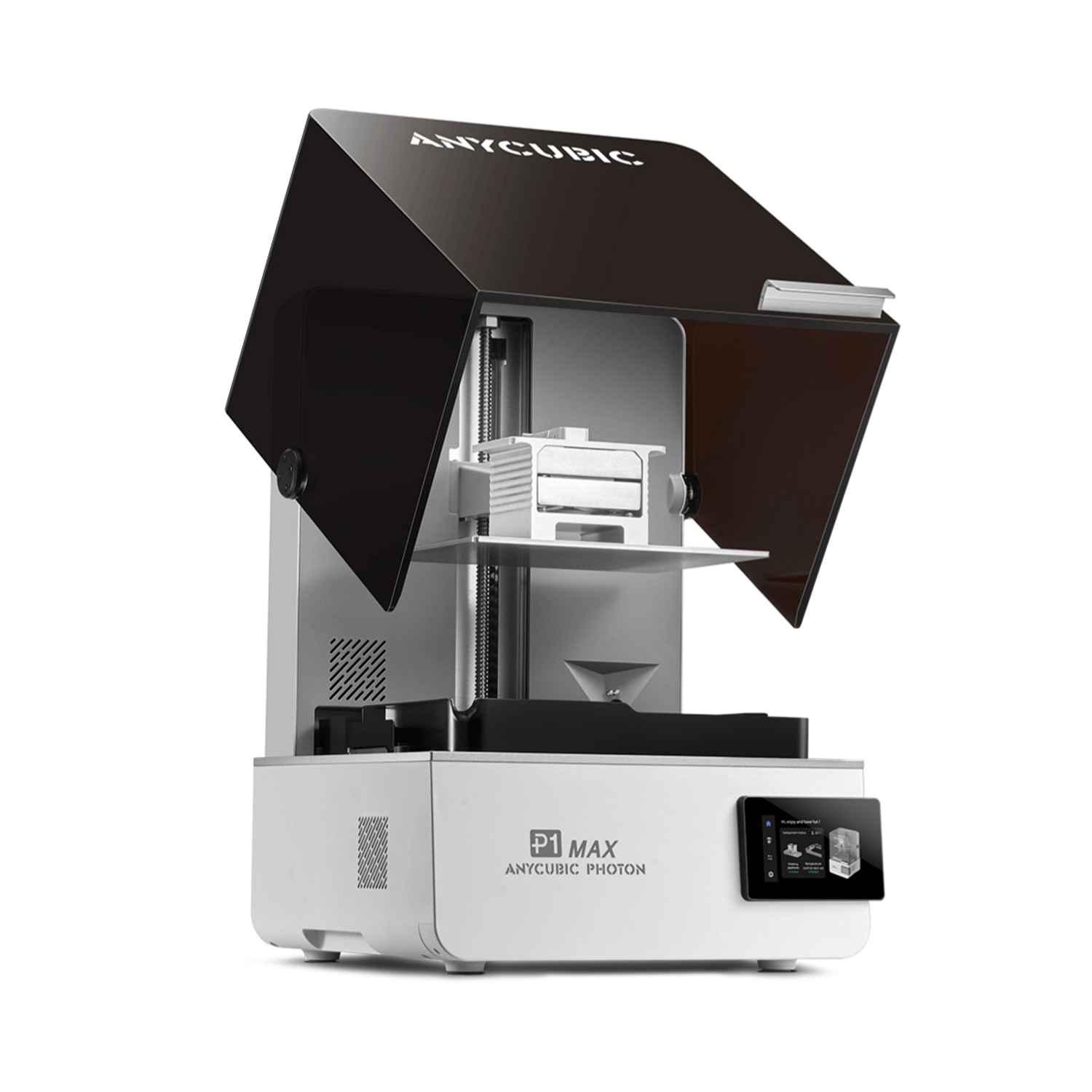

Tired of prints that look great in the slicer but disappoint on the platform? The Photon P1 Max is built to close that gap. A precision-ground steel build platform provides a stable, consistent adhesion surface, while the dual linear guide rails and ball lead screws on the Z-axis deliver smooth, repeatable motion with every layer. Layer heights range from 0.02 to 0.15 mm, giving you the flexibility to dial in ultra-fine detail or accelerate through faster, practical prints at up to 15–25 mm/h.

Intelligent Assistance That Gets Out of Your Way

Setting up a large-format resin printer has traditionally been the most frustrating part of the process. The Photon P1 Max addresses this head-on with Leveling-Free 3.0 — a system that combines automatic levelling self-check before each print, levelling feedback with real-time force values at all four corners, and factory calibration so the machine is ready straight out of the box. Power loss resume means an unexpected outage does not mean a wasted print. The integrated camera enables remote print submission and real-time monitoring through the Anycubic App, with dual-network connectivity via Wi-Fi and Ethernet for flexible, secure operation.

Built for the Long Run

The Photon P1 Max supports all Anycubic resins as well as 8000 cps high-viscosity resin, broadening your material options considerably. Dynamic temperature control on the resin vat helps maintain consistent resin viscosity during printing, while the hotbed can reach up to 35°C in ambient conditions of 5°C or above. Operating at ≤45 dB, it is quiet enough for a home workshop or shared studio space. Compatible slicer software includes Photon Workshop, Chitubox, Lychee, and Tango, so you can work in the environment you already know. Control is available via the 4.5-inch resistive touchscreen, the Anycubic App, or USB drive — whichever suits your workflow.

Features

• Large 285.5 × 214 × 300 mm (18.3L) build volume — print large single pieces or maximise batch output in one cycle
• MSLA resin printing technology with layer heights from 0.02 to 0.15 mm for fine detail across the full build area
• Leveling-Free 3.0 with automatic self-check, levelling feedback, and factory calibration — ready to print from first power-on
• Precision-ground steel build platform paired with dual linear guide rails and ball lead screws on the Z-axis for repeatable accuracy
• Dynamic temperature control on the resin vat maintains consistent viscosity; hotbed reaches up to 35°C at ≥5°C ambient
• Integrated camera for remote print submission and real-time progress monitoring via the Anycubic App
• Dual-network connectivity: Wi-Fi and Ethernet, plus USB Drive support for flexible print submission
• Quiet operation at ≤45 dB; compatible with Photon Workshop, Chitubox, Lychee, and Tango slicers
• Power loss resume protects in-progress prints from unexpected interruptions
• Supports all Anycubic resins and 8000 cps high-viscosity resin

Specifications

• Printing Volume: 285.5 x 214 x 300mm³
• Printing Speed: 15-25 mm/h (0.05 mm layer, Std Resin)
• Layer Height Range: 0.02-0.15 mm
• X/Y Axis Resolution: 24.8 × 24.8 μm
• Light Source: COB + Fresnel + Mask
• Light Intensity: ≥4000μW/cm²
• Material Compatibility: All Anycubic Resins
• Build Platform: Precision-ground Steel Platform
• Z-axis: Dual linear guide rails + Ball lead screws
• Release film: NFEP
• Resin Vat: 1.9L
• Machine Leveling: Leveling-Free 3.0 + Leveling Feedback + Leveling Self-Check
• Power Loss Resume: Supported
• Power Supply: 296W
• Protection Film: Wave Release Film
• Resin Auto-fill Unit: Not Supported
• Dynamic Temperature Control Resin Vat: Supported
• Slicing Software: Photon Workshop( + Chitubox/Lychee/Tango)
• Hinged Cover: Smooth Hinge (>45° stepless)
• Operating Screen: 4.5″ Resistive Touchscreen
• Air Purifier: Optional AirPure 2.0
• LCD Screen: 14″ Monochrome LCD (12K)
• Anycubic App: Supported
• Multilingual Support: EN / CN / DE / FR / IT / ES / RU / JP / PT / KR
• Product Dimensions: 430 x 414 x 625mm³
• Machine Weight: 23100g

What’s in the Box

• Anycubic Photon P1 Max x1
• Print Platform x1
• Resin Vat x1
• Wet Wipes x1
• Hex Key Set x1
• Protective Equipment x1
• Filter x1
• Scrapers x1
• USB Drive x1
• Power Cord x1
• User Manual x1

Why Anycubic

Anycubic has been engineering desktop resin and filament 3D printers since 2015, combining precision mechanics with accessible, intelligent software to help makers, engineers, and artists bring their ideas to life. The Photon P1 Max reflects that commitment — a large-format machine designed to perform reliably, print after print, with the intelligence to help users of all experience levels succeed.
